Mobile Weighing Solutions

Mobile Weighing Solutions

Our Mobile Weighing Solutions incorporate our Wireless Wheel Pads & Bluetooth iForks both designed to weigh your product avoiding the hassle of connecting cables between the platforms and the indicator. The Wheel Pads are ideal for weighing vans or trucks and can be supplied either the touch screen or more basic unit. Our iForks weight indicator located in the cabin shows the weight of the load on the forks and offers a complete range of weighing functions: gross/net weighing, total weight per shipment, code entry, date/time registration, and piece counting. The indicator can provide weight data transfer to a printer, a data terminal, or directly to a WMS or ERP system, via RS232, Bluetooth or WiFi

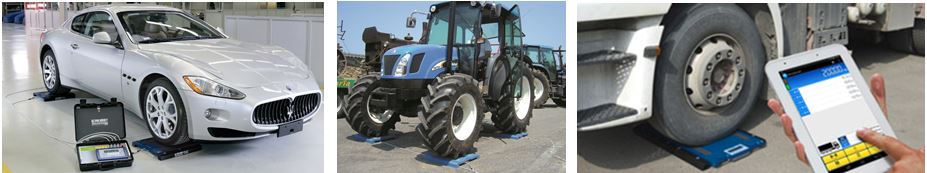

Wireless Wheel Pads

These are designed creating wheel and axle vehicle weighing stations, avoiding the hassle of connecting cables between the platforms and the indicator. Ideal for weighing larger vehicles (vans, trucks, tankers, trucks etc..); particularly accurate and sturdy. Various weighing terminals can be supplied either the touch screen or more basic unit, each comes complete with carry case and ticket printer which will print individual wheel weights, totals, customers details and much more if needed.

Mobile Weighing Solutions, Wheel Pads & Axle Weighers

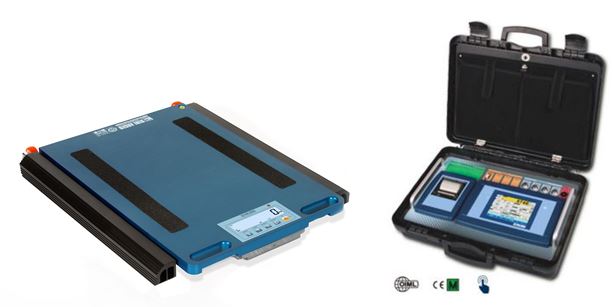

Wireless Wheel Pad with Touch Screen Terminal

Application Examples



Mobile Weighing Solutions, Wheel Pads & Axle Weighers

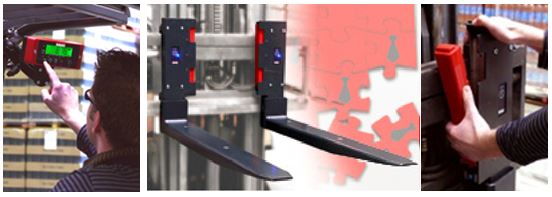

Bluetooth Fork Truck Scale

The iForks are the first completely wireless scale forks for forklift trucks, reach trucks and narrow aisle trucks. Since all components are fully integrated in the forks, the iForks have no external cabling whatsoever and the weighing system can be installed onto any forklift truck in a matter of minutes: plug & weigh! From that moment on, every load lifted by the truck is instantly and accurately weighed.

  • iForks 2500: 0-2000 kg in 2 kg steps, over 2000 kg in 5 kg steps;
  • iForks 3000: (to a fork length of 1300 mm, 2 load cells per fork) 0-2000 in 2 kg steps, over 2000 kg, in 5 kg steps;
  • iForks 5000: (to a fork length of 1300 mm, 2 load cells per fork) 0-5000 in 5 kg steps (5-ton load cells).

Iforks

Each scale fork communicates the weight lifted with the weight indicator in the cabin via Bluetooth. The weighing system is powered by robust, exchangeable battery modules. They are not only resistant to rough use, but also extremely compact, keeping the fork dimensions (w x h = 133 x 58 mm) very close to those of standard lift truck forks and making sure that the user does not loose  any handling performance

The iForks weight indicator in the cabin shows the weight of the load on the forks and offers a complete range of weighing functions: gross/net weighing, total weight per shipment, code entry, date/time registration, and piece counting. The indicator can provide weight data transfer to a printer, a data terminal, or directly to a WMS or ERP system, via RS232, Bluetooth or WiFi. The display is equipped with backlight, making it perfectly readable even in the darkest corners of a warehouse or production environment. iForks offers Digital Calibration Technology: via the keys of the indicator the scale can be digitally adjusted, quickly and accurately.

Datasheets



1-PDF-ICON          1-PDF-ICON

Wheel Pads               Fork Truck Scale

For more information email your enquiry:  Contact us
