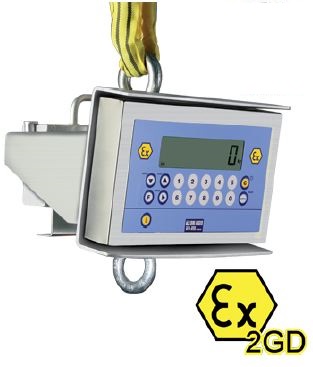

ATEX Crane Weigher

ATEX Crane Scale Zone 1atex crane scale, Ex symbol

Our range industrial crane scale for use in areas classified as hazardous (Zone 1 and 21, 2 and 22) in accordance with Ex II 2GD IIC T4 T197°C X protection. The structure is built completely in stainless steel, with IP68 protection, various weighing capacities are available. The weight is displayed on an LCD 25 mm display which gives the atex crane scale upto 160 hours use, to recharge the battery this is carried out in the safe area, additional battery packs can be supplied if required.

Atex crane scale Low

Weighing capacities

  • 600 kg x 0.2 kg
  • 1500 x 0.5 kg
  • 3000 kg x 1 kg
  • 6000 kg x 2 kg

Specification

  • Indicator with 17­key numeric ­functional waterproof keypad
  • LCD display with 6 25­mm high contrast digits and icons for showing the active functions.
  • Precision: +/­ 0.1% F.S.
  • Built extremely sturdy in IP68 stainless steel.
  • Fitted with upper and lower shackle
  • Operating temperature: ­10 /+40 ºC
  • Adjustable digital filter, anti vibration and oscillation
  • Programmable auto switch­off power for energy saving
  • Hermetically sealed extractable rechargeable battery, with 160­hour operating time; rechargeable in safe area.
  • Equipped with 230Vac 50 Hz battery charger to be used in safe area
