LD Crane Weigher

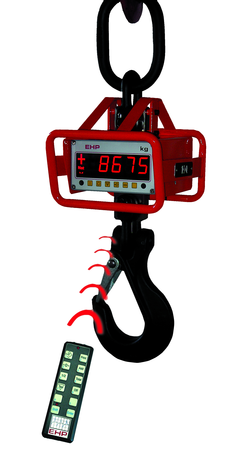

The LD Crane Weigher is the none approved version of the LDN and is widely used within the steel industry with its bright 42 mm LED display giving allowing viewing from upto 40 m, supplied as standard with a remote control to allow functions such as on/off, tare, zero and print when connected to any of our base stations. If is designed to operate in temperatures between -30 °C and +80°

LDN_01

Weighing capacities

  •      500 kg x   0.1 kg
  •   1.000 kg x  0.2 kg
  •   2.000 kg x  0.5 kg
  •   5.000 kg x      1 kg
  • 10.000 kg x     2 kg
  • 12.000 kg  x    2 kg
  • 20.000 kg x    5 kg
  • 30.000 kg x 10 kg
  • 50.000 kg x 10 kg

Specification

  • Very high accuracy of 0.03% rated capacity.
  • 3-year guarantee of accuracy and operation of the load cell.
  • German TÜV approved
  • Instantaneous display of weight
  • Automatic switch-off
  • Permissible overload factor of mechanical parts to 500% of the scale capacity
  • Can be tared off up to 100%, using the infrared hand transmitter
  • Illuminated display for use within dark locations
  • Optional/retrofit kits: Weighing Data Transmission by UHF radio to peripheral equipments
