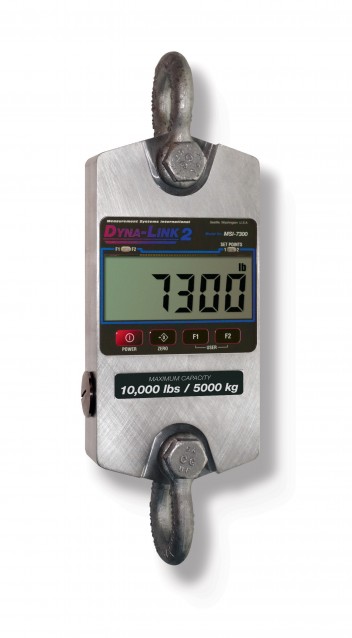

Tension Dynamometer MSI-7300

Tension Dynamometer

Industry’s most advanced digital tension dynamometer, the new and improved MSI-7300, provides even more features and benefits than earlier dynamometer Link 2 offers a lightweight, portable design for better handling, and superior viewing with its large 1.2 inch display. Choose from capacities ranging from 0.5 to 300 tons. The product offers reduced overall weight and headroom providing a great fit for low headroom, load  monitoring, weighing and force measurement solutions applications. Such applications include tower erectors, utility companies, nuclear facilities and material handlers. To allow easy viewing of the weight display optional hand held devices are available which can be either wired or wireless depending on the application. These also allow the control of all of the functions such as Zero, Tare, Unit selection and Peak hold depending on the model chosen.

Dyna Link_MSI_7300, tension dynamometer

Standard Features

  • Five-digit 1.22 in. (31 mm) LCD display
  • NEMA 4/IP65 enclosure for use in all environments
  • 200% safe loading, 500% ultimate loading integrity
  • Crosby compatible shackle interface
  • Multi-feature programming and I/O connectivity
  • Two each “C” alkaline batteries for capacities up to 10,000 lb (5,000 kg)
  • Two each “D” batteries for capacities 25,000 lb (12,500 kg) and above
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (7:1 Ultimate Safety Factor)

Options and Accessories

  • Pair of Crosby® shackles
  •  Transport case
  • RS-232 serial cable
  • RF modem for connectivity with MSI-8000 RF remote display
  • MSI-8000 RF Remote Display RF 2.4 GHz – 802.15.4, operating range 100 ft (30 M) typical
  • Higher capacity designs available upon request

Datasheet

1-PDF-ICON
