LKE EHP

LKE  Trade Approved Crane Weighing Scale

The LKE Crane Weigher has a large Red LED display of 50 mm makes for easy viewing supplied as standard with a remote control to allow functions such as on/off, tare, zero and print when connected to any of our base stations. If is designed to operate in  temperature between -20 °C and +90°. As an optional extra RF communication can be added so that the crane weighing scale can interface to remote displays, net works and other peripherals.

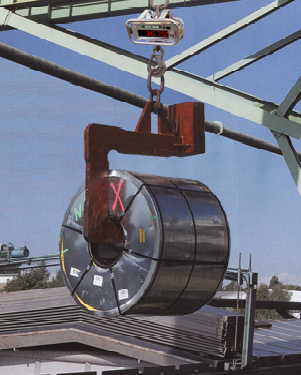

LKE Coil

Harsh Environmental Use

If your application involves using your suspended crane weigher in harsh environments such as Galvanizing the EHP model LKE is ideal, it is supplied in weighing capacities from 1000 to 30000 kg and with an accuracy of 0.03 %.

Weighing capacities

  •     1.000 kg x 0.5 kg
  •     2.000 kg x    1 kg
  •     5.000 kg x    2 kg
  •   10.000 kg x    5 kg
  •   20.000 kg x  10 kg
  •   30.000 kg x  10 kg

Specification

  • Highest  accuracy of 0.03% rated capacity.
  • 3-year guarantee of accuracy and operation of the load cell.
  • German TÜV tested
  • Instantaneous display of results
  • Automatic switch-off
  • Scale housing protected against mechanical damage/ram protection
  • Optional/retrofit      kits: Weighing Data Transmission by UHF radio to peripheral equipment.

Areas of application

  • Harsh industrial environments
  • Accurate check of weight of inward/outward goods
  • In-line weighing processes
  • In all known applications where goods are sold by weight.

Datasheet

1-PDF-ICON
